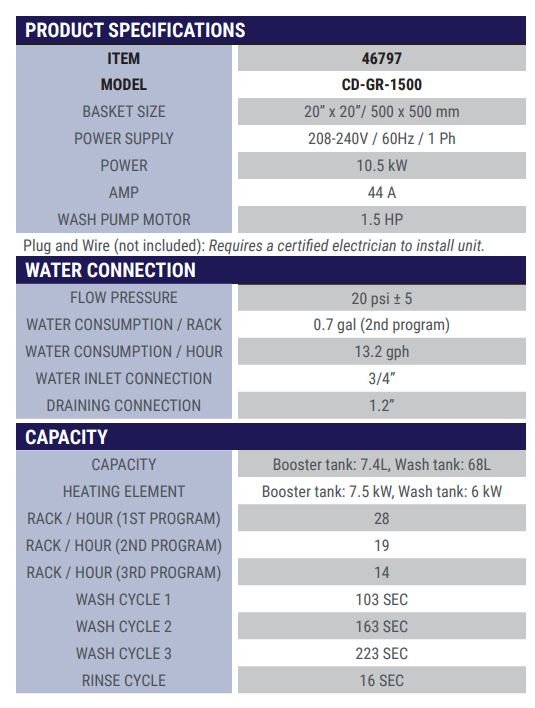

Maintaining clean dishes is important for any foodservice operation. Omcan digital control dishwashers, you can assure that you can keep up with the demands for your operation. Our dishwashers come with dish racks for convenience. Our units also provide ease of use for operators.Thank you for viewing our quality commercial restaurant equipment online at The Foodservice Equipment Depot. We are your trusted food equipment supply store in Canada based out of Calgary, AB. The FED has answers for your how-to’s, product guides, specifications, drawings, discount pricing and shipping questions. If you are wanting to buy used or new food equipment in stock at our warehouse, please contact us today for a quote.Download Spec DocumentITEM 46797

BASKET SIZE 20″ x 20″/ 500 x 500 mm

ELECTRICAL 208-240V / 60Hz / 1Ph

AMP 44A

WASH PUMP 1.5 HP

PLUG AND WIRE (not included) Requires a certified electrician to install unit

FLOW PRESSURE 20 psi ± 5

WATER CONSUMPTION / RACK 0.7 gal (2nd program)

WATER PRESSURE REQUIREMENTS 30-72 PSI

WATER CONSUMPTION / HOUR 13.2 gph

WATER INLET CONNECTION 3/4″

DRAINING CONNECTION 1.2″

CAPACITY Booster tank: 7.4L, Wash tank: 68L

HEATING ELEMENT Booster tank: 7.5 kW, Wash tank: 6 kW

RACK / HOUR (1ST PROGRAM) 28

RACK / HOUR (2ND PROGRAM) 19

RACK / HOUR (3RD PROGRAM) 14

WASH CYCLE 1 103 SEC

WASH CYCLE 2 163 SEC

WASH CYCLE 3 223 SEC

RINSE CYCLE 16 SEC

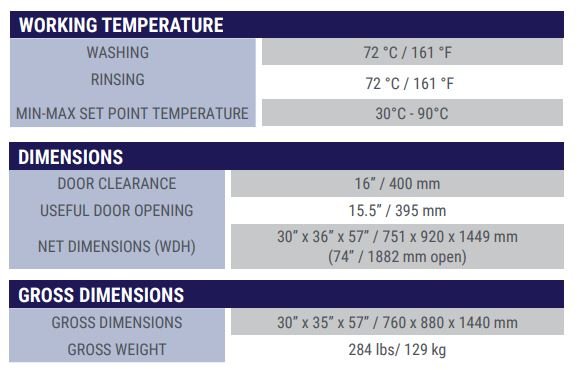

WASHING TEMPERATURE 72 °C / 161 °F

RINSING TEMPERATURE 72 °C / 161 °F

MIN-MAX SET POINT TEMPERATURE 30 °C / 90 °F

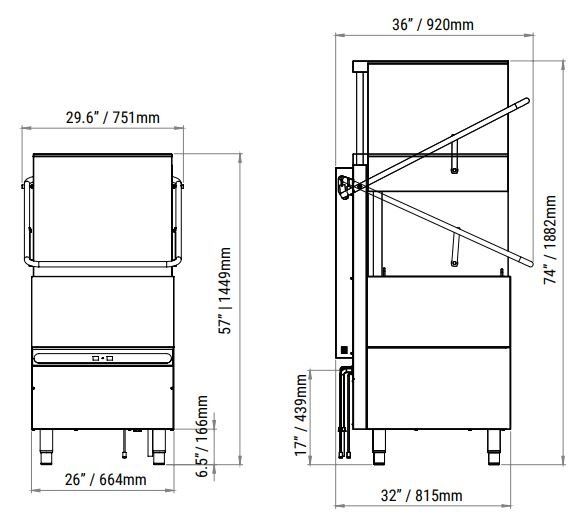

DOOR CLEARANCE 16″ / 400 mm

USEFUL DOOR OPENING 15.5″ / 395 mm

NET DIMENSIONS 30″ x 36″ x 57″ / 751 x 920 x 1449 mm (74″ / 1882 mm open)

GROSS DIMENSIONS 30″ x 36″ x 57″ / 751 x 920 x 1449 mm (74″ / 1882 mm open)

GROSS WEIGHT 284 lbs/ 129 kgDOWNLOAD INSTRUCTION MANUAL
