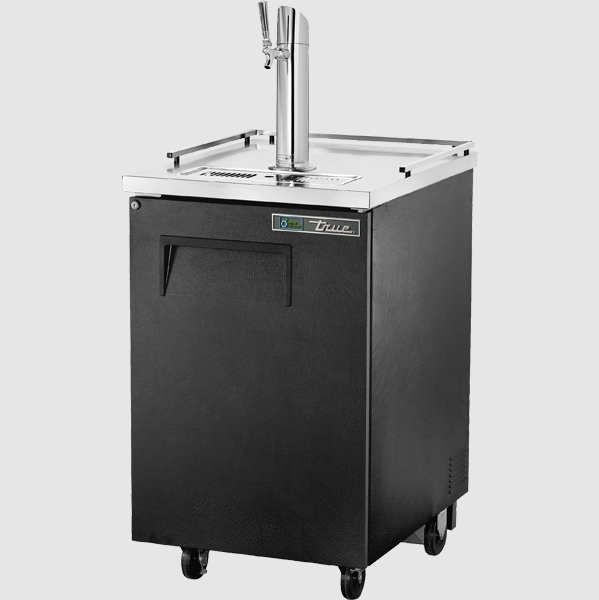

The True TDD-1-HC is a commercial direct draw beer dispenser designed for bars, restaurants, pubs, breweries, hotels, and other foodservice operations. This single-door keg refrigerator accommodates one 1/2 barrel and features a durable black powder-coated exterior, stainless steel countertop, stainless steel interior floor, galvanized steel interior walls, and a 3-inch insulated stainless steel beer column.
The high-capacity refrigeration system uses environmentally friendly R290 hydrocarbon refrigerant and maintains cabinet temperatures between 33°F and 38°F. Electronic fan motors provide efficient and consistent airflow, while the rear-access condensing unit allows for easier cleaning and maintenance. The refrigerated beer column helps reduce foaming and maintain draft beer quality.
The True TDD-1-HC measures 23-1/2"W x 30-1/4"D x 38-1/2"H and operates on 115V, 60Hz, single-phase power with a 1.4 amp electrical draw. The unit includes a positive-seal door, removable magnetic gasket, recessed door handle, standard door lock, anodized aluminum glass rail, and factory-installed draft beer column. It is NSF/ANSI Standard 7 compliant and designed to accommodate all types of beer kegs.
| Net Weight | 205 lb (93 kg) |
|---|---|
| Width | 23.50" |
| Depth | 31.25" |
| Height | 39.75" |
| Warranty | 7 years parts & labor; 7 years |
| compressor | parts |
| Electrical | 115 volts, 60 Hz, 1 phase, 1.4 amps |
| Compressor | 1/10 HP |
| Storage capacity | 1 × 1/2 barrel keg |
| Temperature | 33°F–38°F (0.5°C–3.3°C) |
| Plug type | NEMA 5-15P |
| Door configuration | 1 solid swing door |
