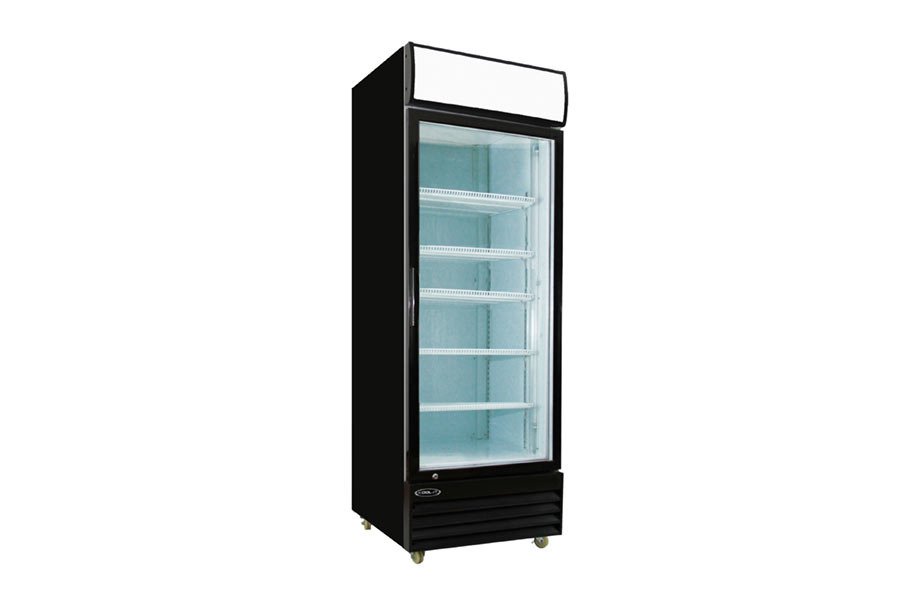

The Kool-It KGM-23 is a single swing glass door merchandiser cooler for displaying and holding chilled beverages and food in delis, convenience stores and kitchens. It stores 20.9 cubic feet across 4 shelves and runs on 115V/60Hz single phase.
The cabinet has a black baked-enamel steel exterior and a white baked-enamel steel interior with a painted steel interior base. Heavy-duty polyethylene-coated adjustable wire shelves hold product, and the double-pane locking glass door is self-closing with easy-grab handles. A plastic upper sign panel with a lamp sits above the door, and the cabinet rolls on 2-1/2" casters.
Forced air moves through the entire cabinet, and the unit holds 33 to 40°F. High-efficiency evaporators are paired with an oversized condensing unit, temperature is shown on a digital display with electronic thermostatic control, and LED interior lighting lights the product. The cabinet is foamed-in-place CFC-free polyurethane with one-piece magnetic door gaskets and R290 refrigerant. The spec sheet lists the unit as ETL approved and conforming to NSF 7 standards.
| Model | KGM-23 |
|---|---|
| Door | Type Swing glass |
| door | (double-pane, locking, self-closing) |
| Storage Capacity | 20.9 cu ft |
| Shelves | 4 |
| Overall Dimensions (W x D x H) | 27.6" x 31.1" x 80.9" |
| Internal Dimensions (W x D x H) | 23.7" x 24.2" x 62.8" |
| Voltage | 115V / 60Hz / 1 phase |
| Amps | 3.8 A |
| Compressor | 1/4 HP |
| Refrigerant | R290 |
| Holding Temperature | 33-40°F |
| Net Weight | 234 lb |
| Shipping Dimensions (W x D x H) | 29.3" x 32.5" x 83.5" |
| Shipping Weight | 269 lb |
