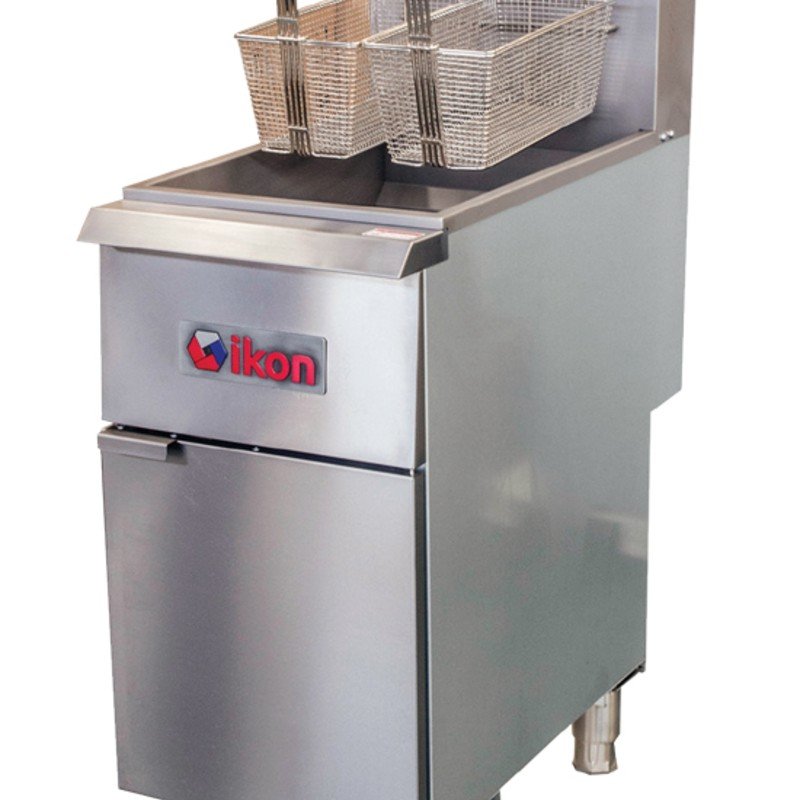

The Ikon IGF-40/50 is a natural gas, millivolt-controlled floor fryer with a 4 tube heat exchanger design. Each tube is rated at 30,000 BTU, for 120,000 BTU total, and the tank holds 40 to 55 lb of oil. The design gives fast temperature recovery and a large cold zone that traps food particles below the fry zone.
The fry tank is stainless steel and the front and door are stainless steel, with galvanized steel sides and back. A millivolt snap-action thermostat adjusts from 200°F to 400°F and a 1-1/4" full port drain valve empties the tank quickly. The unit ships with twin nickel plated baskets, a drain pipe holder on the inside of the door, and four 5" casters.
Adjustable stainless steel legs are available as an option. The fryer connects to a 3/4" NPT gas supply and ships as natural gas; an LP conversion kit is a separate part.
| Oil Capacity | 40-55 lb |
|---|---|
| Heat Tubes | 4 |
| Burner Output | 30,000 BTU per tube |
| Total Input | 120,000 BTU |
| Gas Type | Natural gas (LP conversion kit sold separately) |
| Gas Connection | 3/4" NPT |
| Gas Pressure | Natural gas 4" W.C. (LP 10" W.C.) |
| Thermostat | Millivolt (snap action), 200°F-400°F |
| Drain Valve | 1-1/4" full port |
| Baskets | Twin nickel plated baskets |
| Casters | Four 5" casters standard; adjustable stainless steel legs optional |
| Construction | Stainless steel front and door; galvanized steel sides and back |
| Net Weight | 140 lb (63.6 kg) |
| Shipping Dimensions | 18.5" x 33.5" x 33.1" (W x D x H) |
