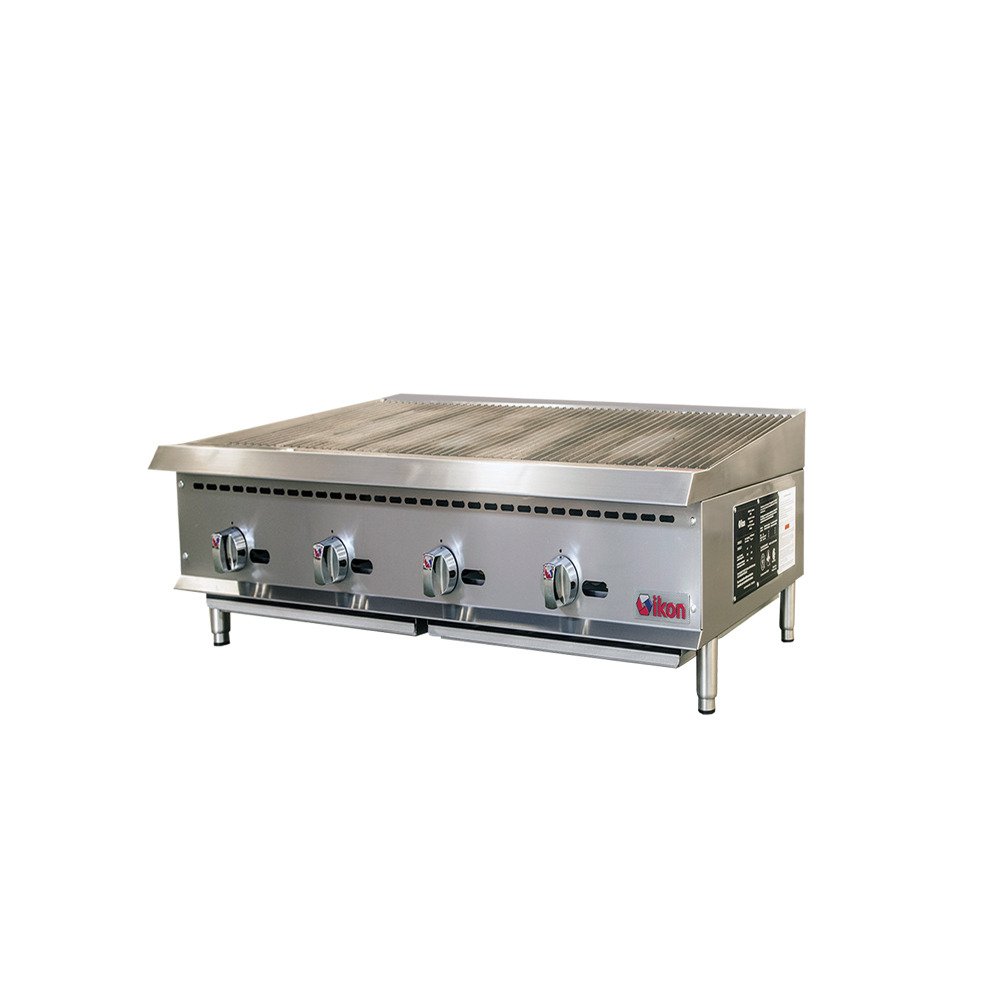

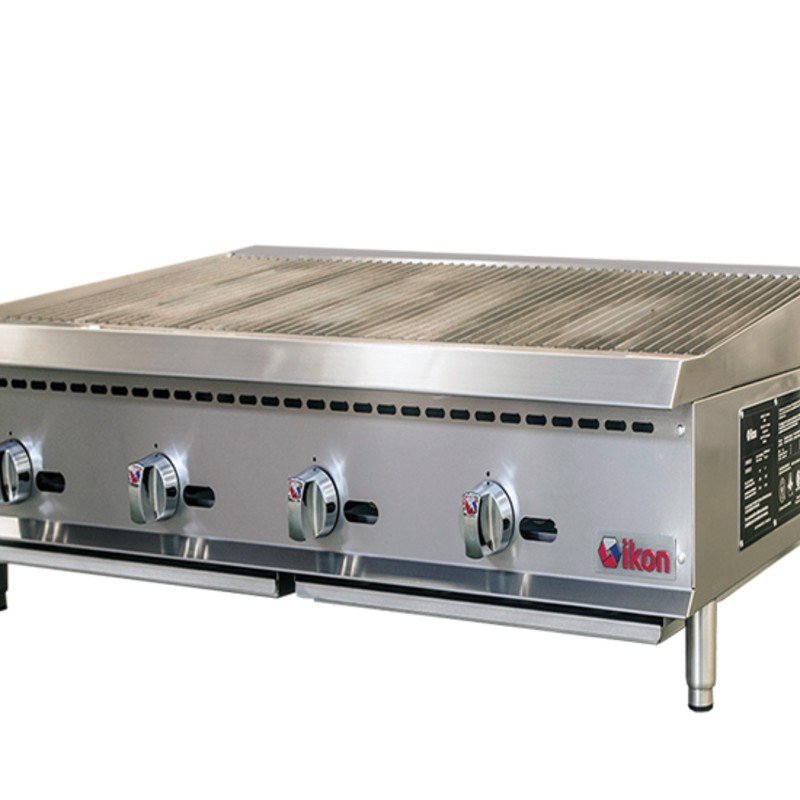

The Ikon IRB-48 is a 48" countertop gas radiant charbroiler with 4 "U" shaped burners rated at 35,000 BTU each (140,000 BTU total). The burners give even heat across each 12" section, and each has its own manual gas control and an adjustable pilot light that lights from the front.
The 10 gauge cast iron radiants and cast iron grates have three height positions for cooking different products at different temperatures. The cabinet is all stainless steel with double wall insulated sides, a cool-to-the-touch front edge, and back and side splash guards. A full-width crumb tray removes easily, and the flue is at the back of the unit. It stands on adjustable stainless steel legs with non-skid feet.
The broiler connects to a 3/4" NPT gas supply, and a conversion kit is supplied for natural gas or LP; conversion should be done by an authorized Ikon service agent.
| Cooking Area | 48" W x 20.0" D |
|---|---|
| Burners | 4 "U" shaped, 35,000 BTU each |
| Total Input | 140,000 BTU |
| Controls | Manual, one every 12" |
| Pilot | One adjustable pilot per burner, lit from front |
| Radiants | 10 gauge cast iron |
| Grates | Cast iron, 3 height positions |
| Gas Connection | 3/4" NPT |
| Gas Pressure | Natural gas 4" W.C.; LP 10" W.C. |
| Footprint | 47.5" W x 21" D |
| Overall Dimensions | 48" x 34.4" x 15.2" (W x D x H) |
| Net Weight | 237 lb (107.7 kg) |
| Shipping Dimensions | 52.8" x 36.2" x 19.3" (W x D x H) |
| Shipping Weight | 288 lb |
