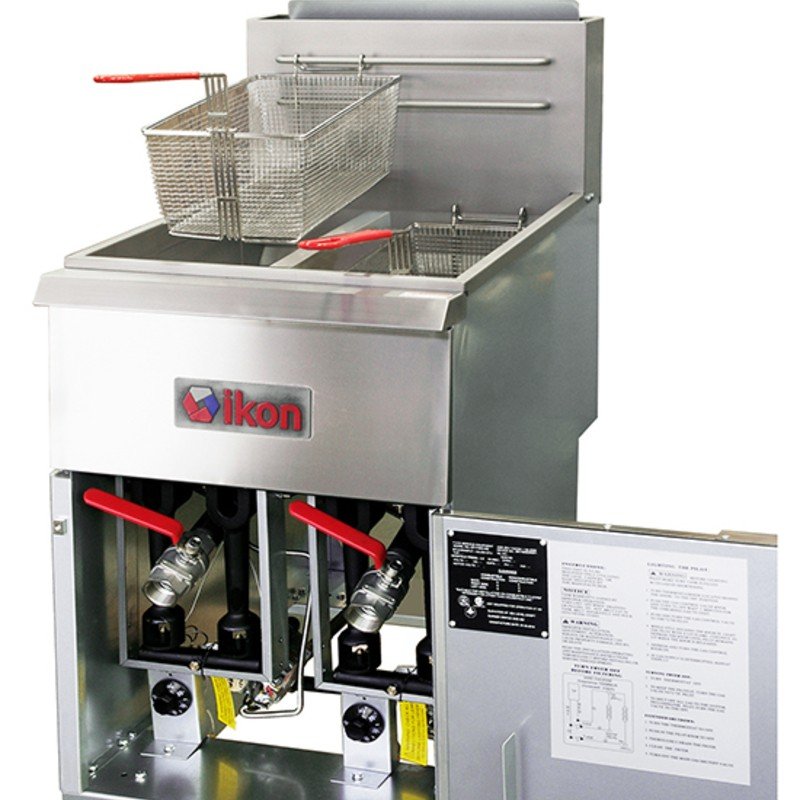

The Ikon IGF-40/40 is a natural gas split tank floor fryer with two separate fry tanks sharing one cabinet, rated at 72 to 78 lb of oil in total. Four burners at 30,000 BTU each give 120,000 BTU, and each tank has its own gas control, so two products can be fried at different times or temperatures.
A millivolt snap-action thermostat adjusts from 200°F to 400°F. The tank is peened for smoother welds and easier cleaning, with a large cold zone to trap food particles and a 1-1/4" full port drain valve for fast oil draining. The front and door are stainless steel, the sides and back are galvanized steel, and the unit comes with twin nickel plated baskets, a drain pipe holder inside the door and four 5" casters. Adjustable stainless steel legs are an optional part.
The fryer ships for a 3/4" NPT gas connection and is supplied as natural gas; an LP conversion kit is a separate part.
| Oil Capacity | 72-78 lb |
|---|---|
| Tanks | 2 split tanks |
| Burners / Heat Tubes | 4 / 4 |
| Burner Output | 30,000 BTU per tube |
| Total Input | 120,000 BTU |
| Gas Control | Individual gas control for each tank |
| Gas Type | Natural gas (LP conversion kit sold separately) |
| Gas Connection | 3/4" NPT |
| Gas Pressure | Natural gas 4" W.C. (LP 10" W.C.) |
| Thermostat | Millivolt (snap action), 200°F-400°F |
| Drain Valve | 1-1/4" full port |
| Baskets | Twin nickel plated baskets |
| Casters | Four 5" casters standard; adjustable stainless steel legs optional |
| Net Weight | 192 lb (87 kg) |
| Shipping Dimensions | 22.5" x 36.25" x 33.5" (W x D x H) |
