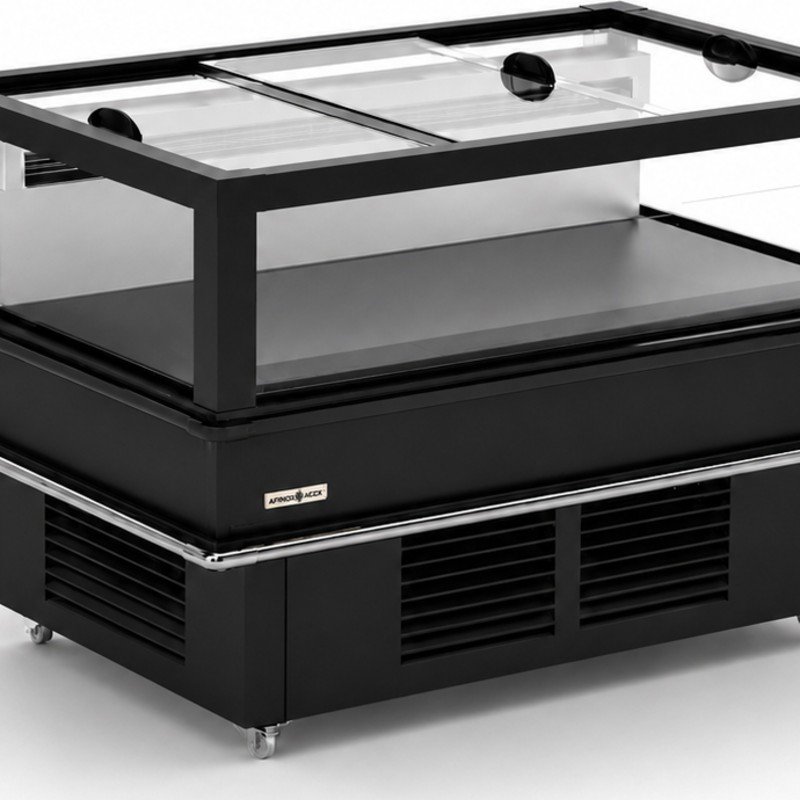

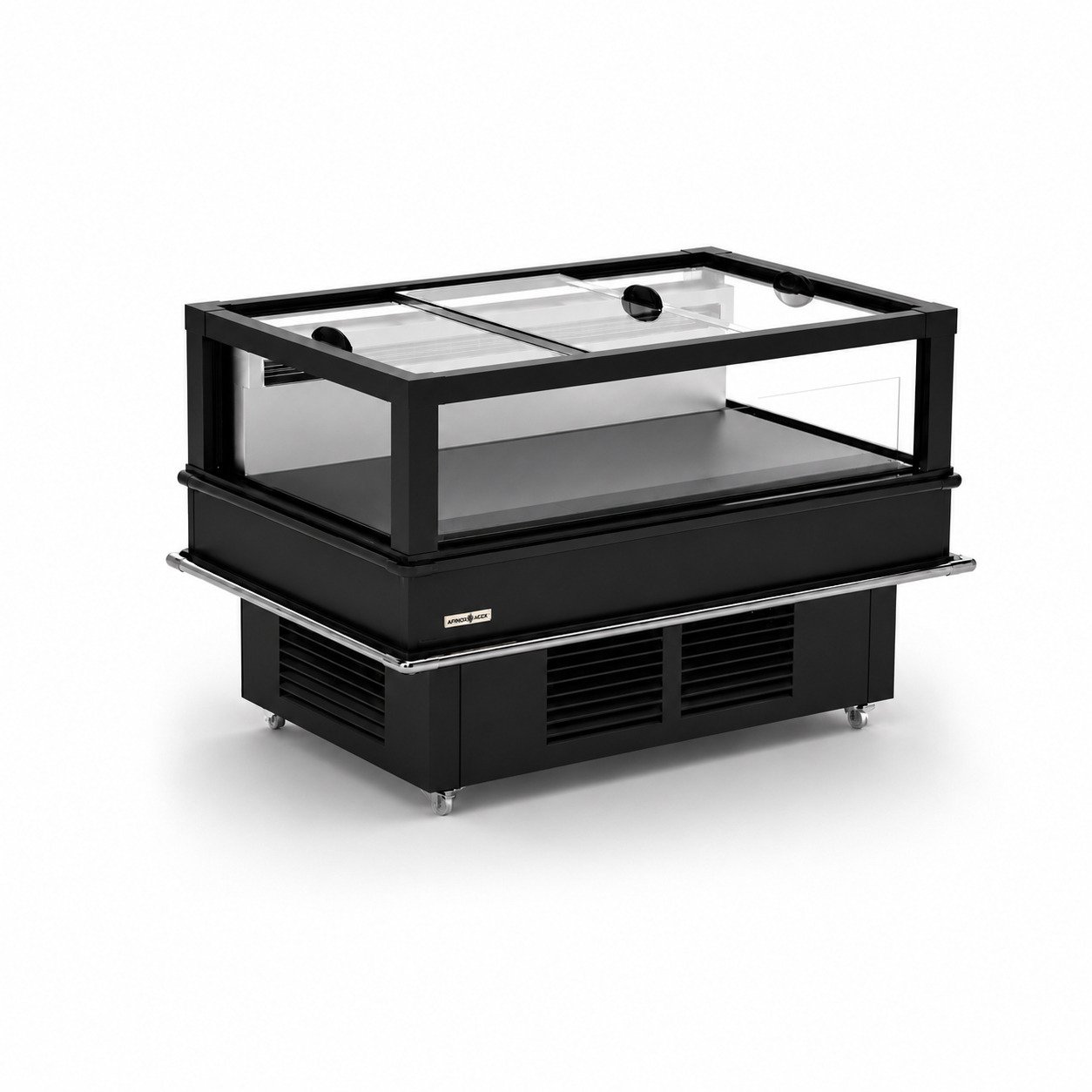

The Hydra-Kool HKI-DT-60-S is a 60 in self-contained dual-temperature island merchandiser for displaying frozen and refrigerated products. A push-button control switches the cabinet between freezer (-10°F to 42°F) and refrigerator (35°F to 46°F) operation, with dual temperature and dual control so operators can adjust to demand. Four sides of tempered glass give a full view of the product, and stainless steel 201 bumper guards protect all sides.
The cabinet is polyurethane foamed in one piece to reduce energy use, with an oversized high-performance evaporator, ventilated cooling, and a hot gas pipe that evaporates condensate automatically. It uses two EMBRACO NEU2178U 1 HP compressors and R290 refrigerant, is DOE compliant, and is a completely self-contained system.
The island rolls on four swivel casters supplied as standard. It operates on 220V/60Hz with a factory-installed NEMA 6-20P power cord and requires its own dedicated circuit; the manual specifies a minimum 6" clearance at the vented base panels.
| Gross Capacity | 11.2 cu ft |
|---|---|
| Net Capacity | 7.6 cu ft |
| Display Area | 18.7 sq ft |
| Temperature Range (Freezer) | -10°F to 42°F |
| Temperature Range (Refrigerator) | 35°F to 46°F |
| Voltage | 220V / 60Hz |
| Rated Power | 1412 W freezing / 3900 W defrosting |
| Rated Current (Brochure) | 6.8 A freezing / 18.5 A defrosting |
| Rated Current (Manual) | 6.7 A / 9.1 A defrost |
| Refrigerant | R290 / 2 x 90 oz |
| Compressors | 2 x EMBRACO NEU2178U, 1 HP each |
| Plug | NEMA 6-20P |
| Casters | 4 swivel, standard |
| Net Weight | 584 lb |
| Product Dimensions (W x D x H) | 62.4" x 41.2" x 40" |
