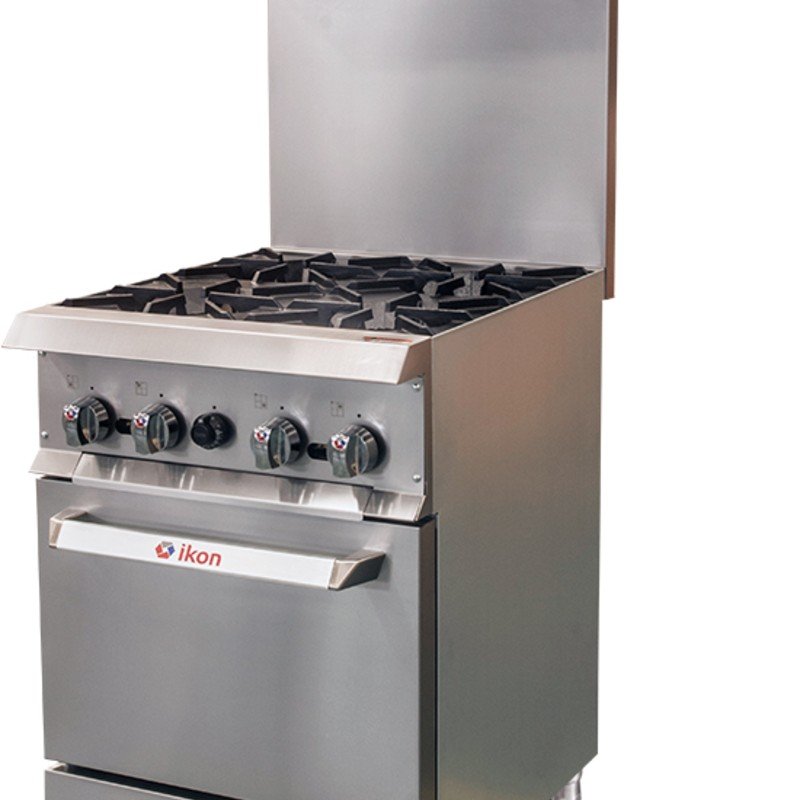

The Ikon IR-4-24 is a 24" gas range with 4 open top burners and one static oven. Total input is 153,000 BTU on natural gas (136,000 BTU on LP).
The range has a stainless steel front, back riser and lift-off shelf, 12" x 12" cast iron top grates, a full pull-out crumb tray, and a 3 position oven rack with 2 racks per oven. The oven interior door, sides and hearth are porcelain coated. Each top burner is rated at 30,000 BTU and each oven at 30,000 BTU, with an individual standing pilot for each burner.
It connects to a 3/4" NPT gas supply. A conversion kit is supplied for natural gas or LP, and conversion should be done by an authorized Ikon service agent.
| Configuration | 4 burners, 1 static oven |
|---|---|
| Top Burners / Ovens | 30,000 BTU per top burner; 30,000 BTU per oven |
| Total Input | 153,000 BTU NG / 136,000 BTU LP (45 kW NG / 40 kW LP) |
| Oven Interior | 19-3/4" W x 22-1/2" D x 18" H |
| Ignition | Individual standing pilot |
| Gas Connection | 3/4" NPT |
| Gas Pressure | Natural gas 4" W.C.; LP 10" W.C. |
| Casters | Four 6.2" casters standard; adjustable legs optional |
| Overall Dimensions | 24.0" x 30.2" x 59.2" (W x D x H) |
| Net Weight | 277 lb (126 kg) |
| Shipping Dimensions | 28.0" x 37.0" x 45" (W x D x H) |
| Shipping Weight | 366 lb |
