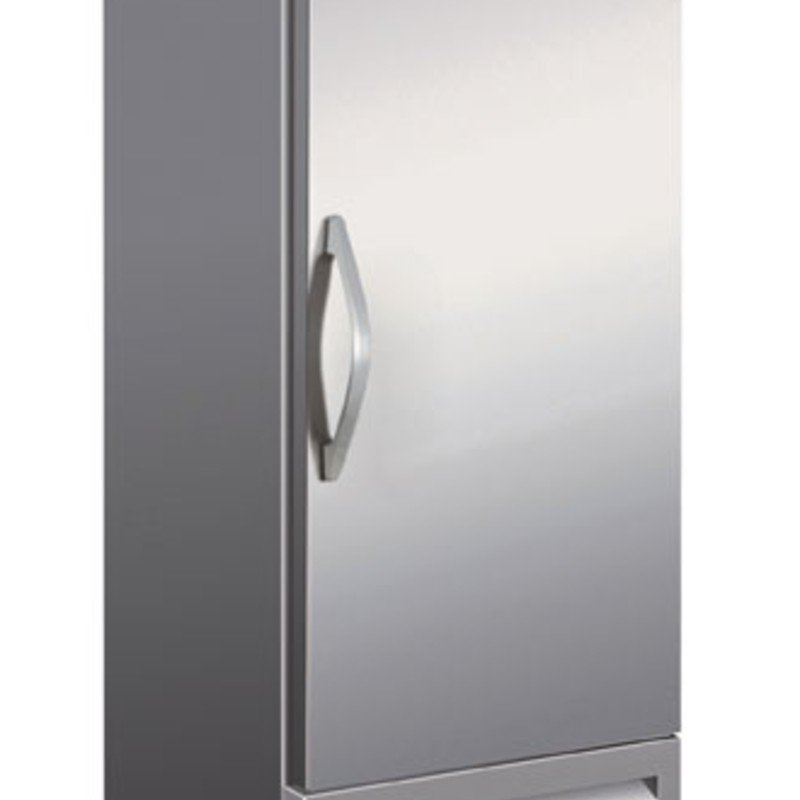

The Ikon IB27F is a one-door reach-in freezer with a bottom-mounted compressor, built for restaurant, cafeteria and institutional kitchens. It holds 0 to -10°F (-17 to -23°C), measures 26.8 in wide x 32.7 in deep x 82.3 in high, and has 3 adjustable epoxy-coated wire shelves per door. It comes on 4 in casters (lockable in front) and runs on 115 V with a NEMA 5-15P plug and 10 ft cord.
The exterior is 430 stainless steel over a 304 stainless steel interior, with CFC-free refrigerant and foam insulation. Doors are self-closing and stay open at 90 degrees, and the magnetic gasket can be replaced without tools. Doors are lockable. The door swing is field reversible.
An electronic thermostat with a digital LED temperature display provides accurate control and easy reading. Freezer door frames have an integral factory-installed heating element to eliminate condensation. The unit uses R-290 natural refrigerant and is designed to operate in ambient temperatures between 40°F and 90°F.
| Model | IB27F |
|---|---|
| Doors | 1 (solid) |
| Temperature Range | 0 to -10°F (-17 to -23°C) |
| Refrigerant | R-290 (natural) |
| Electrical | 115 V, 60 Hz, 1 Ph, NEMA 5-15P plug, 10 ft cord |
| Amps | 11 A |
| Horsepower | 5/8 HP |
| Exterior Dimensions (W x D x H) | 26.8 x 32.7 x 82.3 in |
| Interior Dimensions (W x D x H) | 22.2 x 27.6 x 50.2 in |
| Shelving | 3 adjustable epoxy-coated wire shelves per door |
| Casters | 4 in (lockable in front), standard |
| Exterior | 430 stainless steel |
| Interior | 304 stainless steel |
| Ambient Operating Range | 40°F-90°F for optimum performance |
| Ship Weight | 329 lb |
