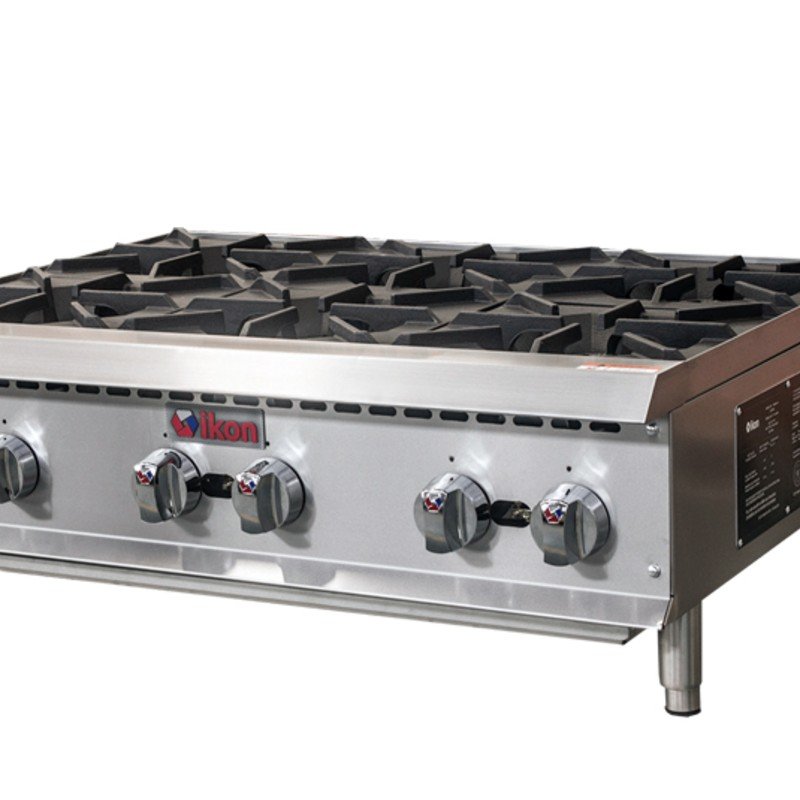

The Ikon IHP-6-36 is a countertop gas hot plate with 6 burners rated at 25,000 BTU each, 150,000 BTU total. Each burner sits under a heavy-duty 12" x 12" cast iron grate with a built-in aeration bowl that holds heat against the pot or pan, and each has its own manual gas control and standing pilot light.
The cabinet is all stainless steel with a cool-to-the-touch front edge, and the cast iron grates sit evenly against the stainless front ledge. A full-length seamless drip pan removes for cleaning, the pilot lights are adjustable, and the unit stands on adjustable stainless steel legs with non-skid feet. It can be serviced from the front.
The hot plate ships ready for a 3/4" NPT gas connection, with a conversion kit supplied for natural gas or LP; conversion should be done by an authorized Ikon service agent.
| Burners | 6 |
|---|---|
| Burner Output | 25,000 BTU each |
| Total Input | 150,000 BTU |
| Cooking Area | 36" x 24" (W x D) |
| Controls | Manual, one per burner |
| Grates | Heavy-duty 12" x 12" cast iron, octagonal cast iron burners |
| Pilot | Standing pilot per burner |
| Gas Connection | 3/4" NPT |
| Gas Pressure | Natural gas 4" W.C.; LP 10" W.C. |
| Footprint | 36.5" x 21" (W x D) |
| Overall Dimensions | 36.5" x 34.1" x 13.0" (W x D x H) |
| Net Weight | 170 lb (77.3 kg) |
| Shipping Dimensions | 40.6" x 36.2" x 17.7" (W x D x H) |
| Shipping Weight | 214 lb |
