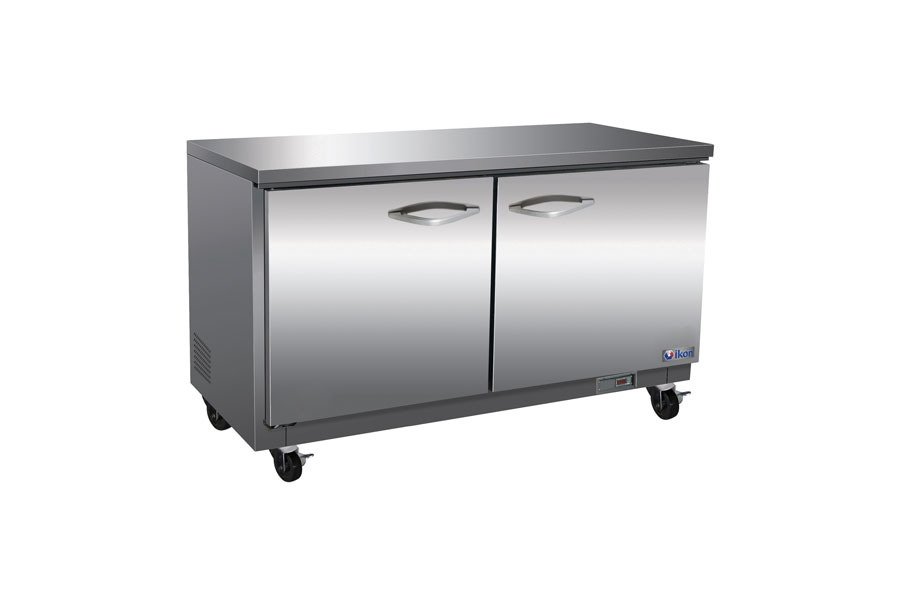

The Ikon IUC36F is a two-door undercounter freezer for prep lines, bars and cafes where space under the counter is limited. It holds 0 to -10°F (-17 to -23°C) and measures 36.4 in wide x 29.9 in deep x 35.5 in high on lockable 2.5 in casters, with 2 adjustable epoxy-coated wire shelves. It runs on 115 V with a NEMA 5-15P plug and 10 ft cord.
The exterior is 430 stainless steel over a 304 stainless steel interior, built on a stainless steel framework with CFC-free refrigerant and foam insulation. Doors are self-closing and stay open at 90 degrees, and the magnetic gasket replaces without tools.
An electronic thermostat with a digital LED display handles temperature control. Defrost and condensate evaporation are automatic. Freezer door frames have a factory-installed heating element to eliminate condensation. The unit uses R-290 refrigerant and is designed to operate in ambient temperatures between 40°F and 90°F.
| Model | IUC36F |
|---|---|
| Doors | 2 (solid) |
| Temperature Range | 0 to -10°F (-17 to -23°C) |
| Refrigerant | R-290 (natural) |
| Electrical | 115 V, 60 Hz, 1 Ph, NEMA 5-15P plug, 10 ft cord |
| Amps | 3 A |
| Horsepower | 1/2 HP |
| Exterior Dimensions (W x D x H) | 36.4 x 29.9 x 35.5 in |
| Interior Dimensions (W x D x H) | 31.5 x 24.9 x 24.2 in |
| Shelving | 2 adjustable epoxy-coated wire shelves (one per door) |
| Casters | 2.5 in (lockable in front), standard |
| Exterior | 430 stainless steel |
| Interior | 304 stainless steel |
| Ambient Operating Range | 40°F-90°F for optimum performance |
| Ship Weight | 203 lb |
