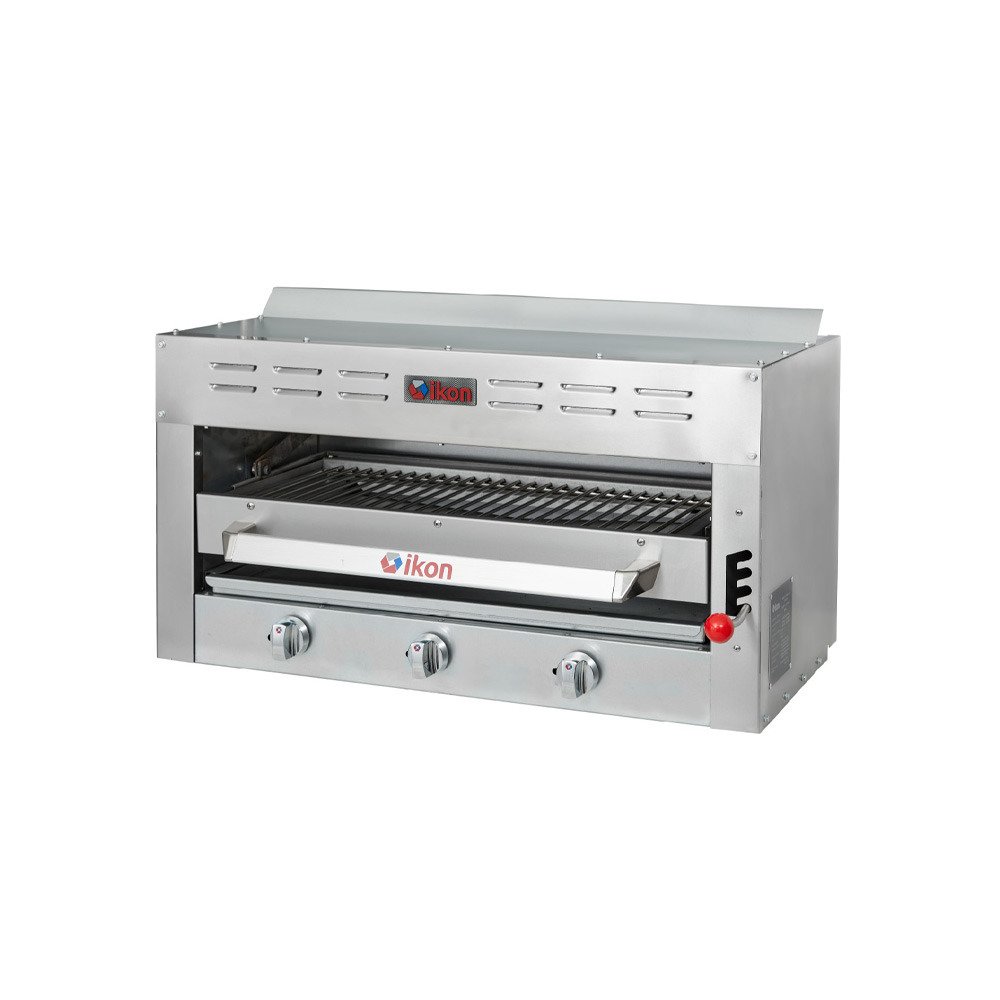

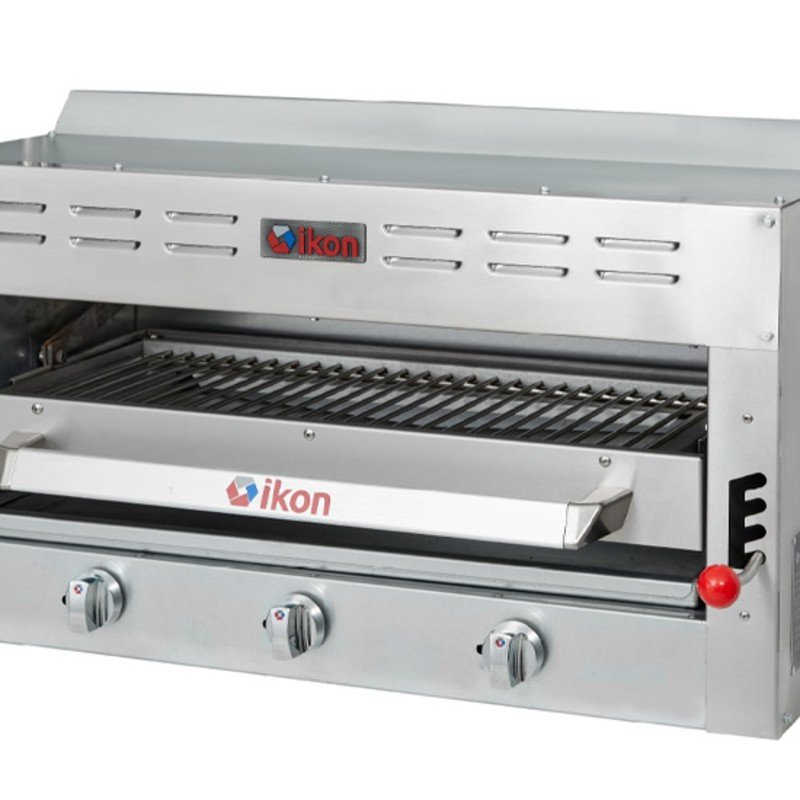

The Ikon IRSB-36 is a gas salamander broiler with an all 304 stainless steel exterior and a dedicated infrared burner for each 12" cooking zone. It has 3 infrared burners at 15,000 BTU each (45,000 BTU total) and a standing pilot ignition system.
A four-position, spring-balanced rack positions the broiler carriage, with a cool-to-the-touch ball grip handle, and a heavy-duty chrome plated broiling grid and a removable full-width spillage pan are included. Adjustable 4" non-skid stainless steel legs are included for countertop use, and a range mount kit is included to mount it over a 36", 48" or 60" range.
A 3/4" rear gas connection with regulator is supplied, along with an LP gas conversion kit. A wall mounting kit for mounting directly under an exhaust hood is available as an option.
| Cooking Zones | 3 x 12" infrared zones |
|---|---|
| Burners | 3 infrared, 15,000 BTU each |
| Total Input | 45,000 BTU |
| Ignition | Standing pilot |
| Rack | 4-position, spring-balanced |
| Broiling Grid | Heavy-duty chrome plated |
| Gas Connection | 3/4" rear, with regulator |
| Gas Pressure | Natural gas 5.0" W.C. (recommended supply 7-9" W.C.); LP 10.0" W.C. (recommended 11-12" W.C.) |
| Legs | Adjustable 4" non-skid stainless steel, included |
| Mounting | Range mount kit included; wall mount kit optional (IRSB-WMK) |
| Exterior | 304 stainless steel |
| Net Weight | 128 lb |
| Shipping Dimensions | 39" x 26.4" x 26.6" (W x D x H) |
| Shipping Weight | 186 lb |
