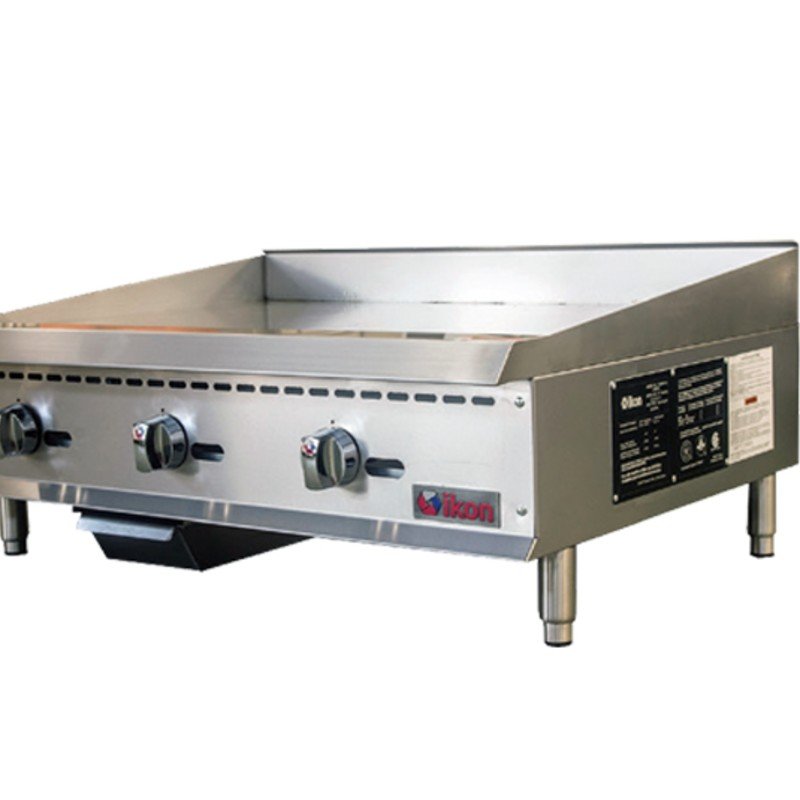

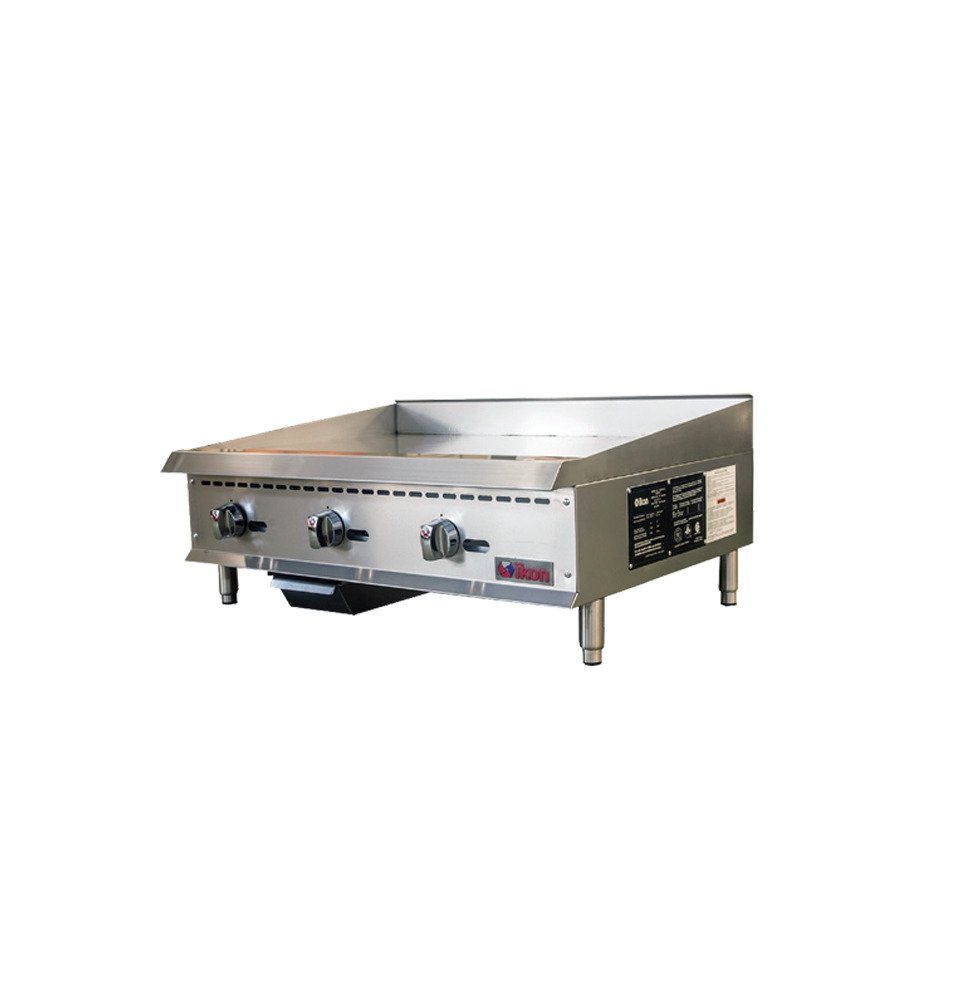

The Ikon IMG-36 is a 36" countertop gas griddle with manual controls. 3 "U" shaped burners at 30,000 BTU each (90,000 BTU total) heat a 3/4" thick polished steel griddle plate, giving even heat across every 12" section, with a gas control knob for each section.
The cabinet is all stainless steel with double wall insulated sides and a cool-to-the-touch front edge, and the back and side splash guards are fully welded to the griddle plate. The pilot light lights from the front, a 3-1/4" grease drawer with a weep hole and baffle removes easily, and the flue is at the back of the unit. It stands on adjustable stainless steel legs with non-skid feet and is fully serviceable from the front.
The griddle connects to a 3/4" NPT gas supply, and a conversion kit is supplied for natural gas or LP; conversion should be done by an authorized Ikon service agent.
| Cooking Area | 36" W x 20.5" D |
|---|---|
| Griddle Plate | 3/4" thick polished steel |
| Burners | 3 "U" shaped, 30,000 BTU each |
| Total Input | 90,000 BTU |
| Controls | Manual, one knob every 12" |
| Pilot | One per burner, lit from front |
| Grease Drawer | 3-1/4" with weep hole and baffle |
| Gas Connection | 3/4" NPT |
| Gas Pressure | Natural gas 4" W.C.; LP 10" W.C. |
| Footprint | 35.5" x 21.0" (W x D) |
| Overall Dimensions | 36" x 34.4" x 15.5" (W x D x H) |
| Net Weight | 220 lb (100.0 kg) |
| Shipping Dimensions | 40.6" x 36.2" x 19.3" (W x D x H) |
| Shipping Weight | 284 lb |
