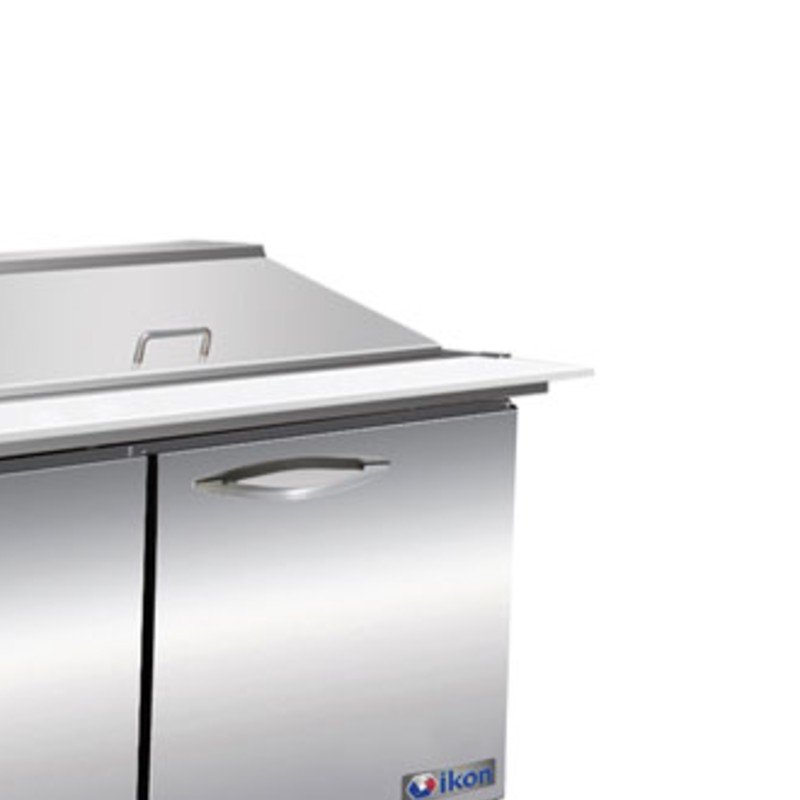

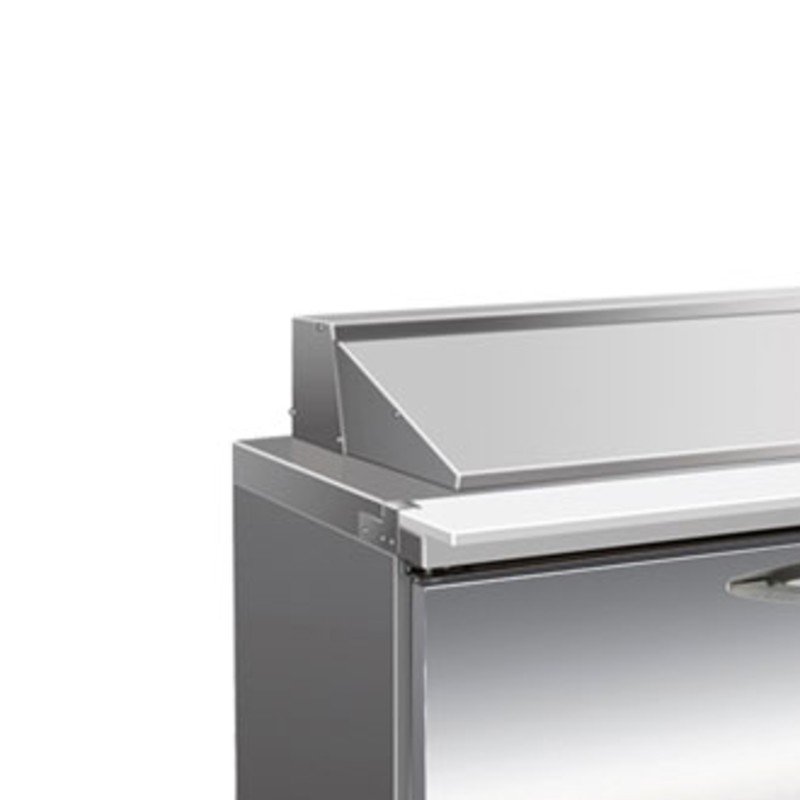

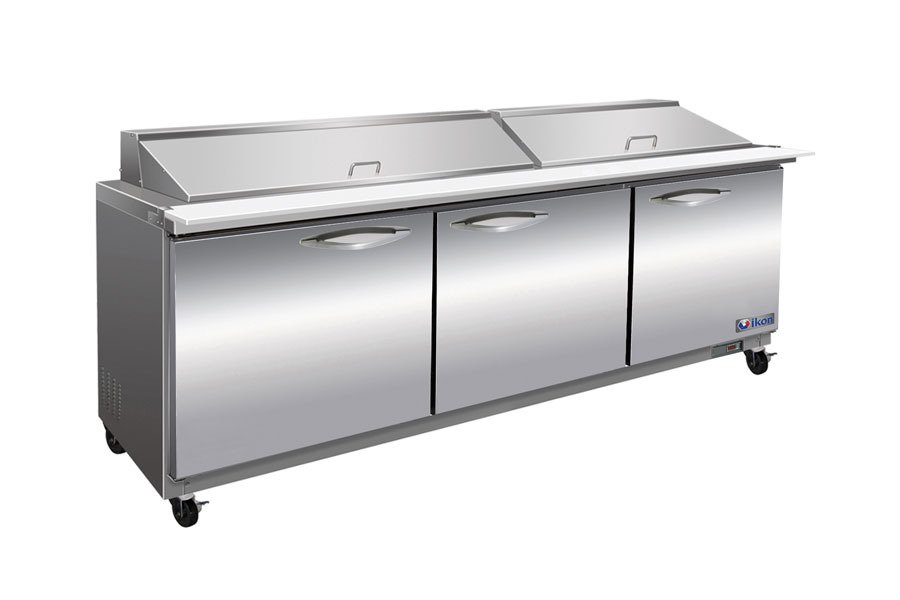

The Ikon ISP72M is a three-door mega top sandwich/salad prep table that holds 33 to 40°F (0.5 to 4°C). It includes 1/6 x 4" portion control pans and a 9" polyethylene cutting board, and uses an electronic thermostat with a digital LED temperature display. It runs on 115V with a NEMA 5-15P plug and 10 ft cord, and cools with R-290 natural refrigerant and CFC-free foam insulation.

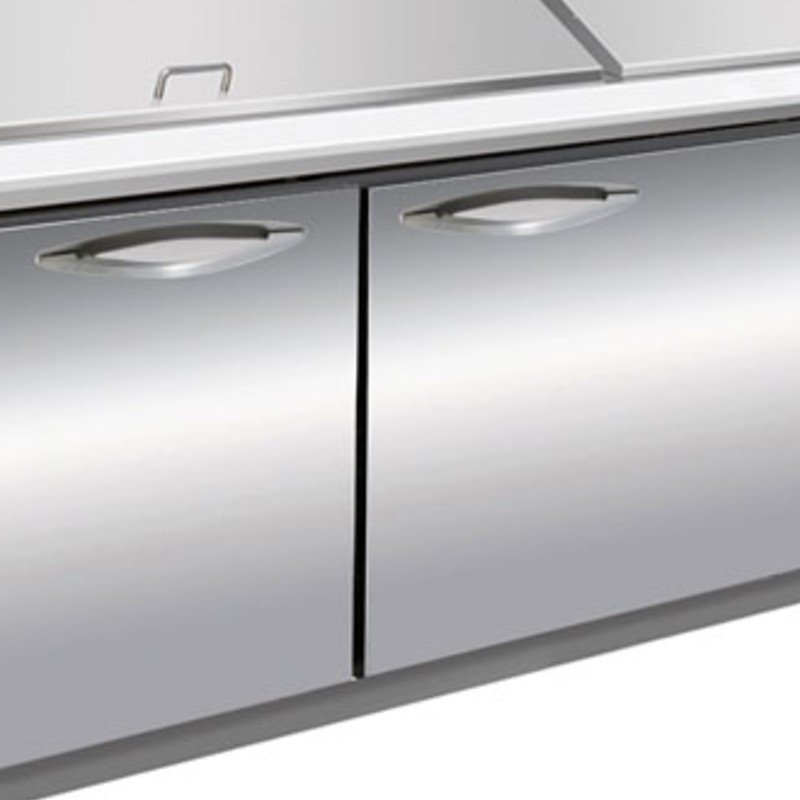

The interior is 304 stainless steel and the exterior is 430 stainless steel on a stainless steel frame. Doors are self-closing and stay open at 90 degrees, with magnetic gaskets that replace without tools. Each door has one adjustable, heavy-duty epoxy-coated wire shelf. The mega top is deeper than the standard sandwich table to hold more pans.
The unit defrosts automatically and evaporates condensation water on its own. It rolls on 2.5" casters that are standard, with two locking at the front, and is designed to operate in ambient temperatures of 40°F to 90°F. Drawer configurations are available by custom order only; contact FED for details.
| Doors | 3 |
|---|---|
| Temperature Range | 33 to 40°F (0.5 to 4°C) |
| Electrical | 115V / 60Hz / 1 Ph, NEMA 5-15P plug, 10 ft cord |
| Amps | 4.3 |
| Horsepower | 1/2 HP |
| Refrigerant | R-290 (natural |
| refrigerant | ) |
| Storage Capacity (manual) | 13.1 cu ft |
| Pans Included | 1/6 x 4" portion control pans (6" pans by custom order) |
| Cutting Board | 9" polyethylene, included |
| Exterior Dimensions (W x D x H) | 71.7" x 34.5" x 43.2" |
| Interior Dimensions (W x D x H) | 67.0" x 24.9" x 24.2" |
| Interior | 304 stainless steel |
| Exterior | 430 stainless steel |
| Casters | 2.5" casters, two lockable at the front |
| Ambient Operating Range | 40°F to 90°F ambient |
| Ship Weight | 408 lb |
