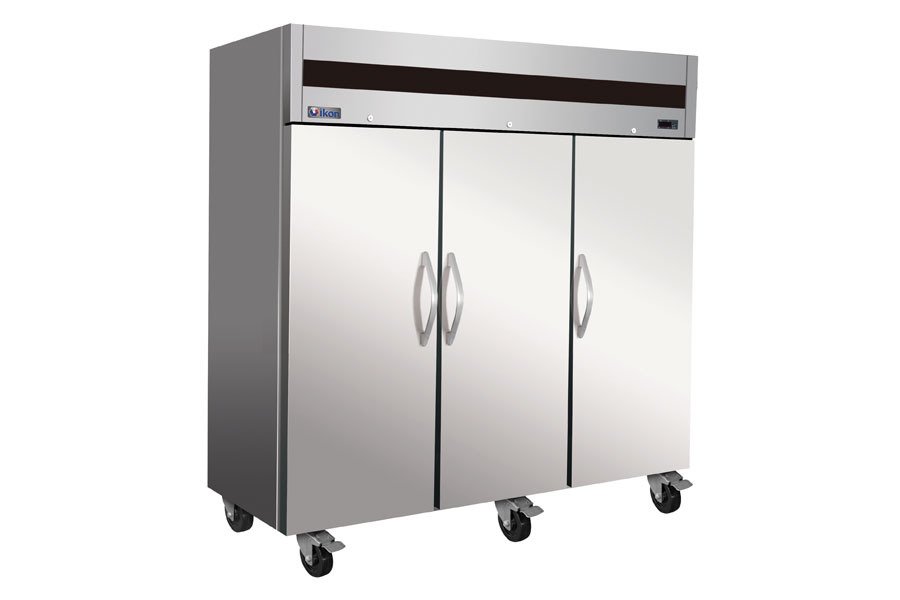

The Ikon IT82R is a three-door reach-in refrigerator with a top-mounted compressor, built for restaurant, cafeteria and institutional kitchens. It holds 33 to 40°F (0.5 to 4°C), measures 81 in wide x 32.7 in deep x 82.3 in high, and has 3 adjustable epoxy-coated wire shelves per door. It comes on 4 in casters (lockable in front) and runs on 115 V with a NEMA 5-15P plug and 10 ft cord.
The exterior is 430 stainless steel over a 304 stainless steel interior, with CFC-free refrigerant and foam insulation. Doors are self-closing and stay open at 90 degrees, and the magnetic gasket can be replaced without tools. Doors are lockable.
An electronic thermostat with a digital LED temperature display provides accurate control and easy reading. A condensate heating element built into the condensate pan evaporates excess water. The unit uses R-290 natural refrigerant and is designed to operate in ambient temperatures between 40°F and 90°F.
| Model | IT82R |
|---|---|
| Doors | 3 (solid) |
| Temperature Range | 33 to 40°F (0.5 to 4°C) |
| Refrigerant | R-290 (natural) |
| Electrical | 115 V, 60 Hz, 1 Ph, NEMA 5-15P plug, 10 ft cord |
| Amps | 7 A |
| Horsepower | 1/2 HP |
| Exterior Dimensions (W x D x H) | 81 x 32.7 x 82.3 in |
| Interior Dimensions (W x D x H) | 76.4 x 27.6 x 59.1 in |
| Shelving | 3 adjustable epoxy-coated wire shelves per door |
| Casters | 4 in (lockable in front), standard |
| Exterior | 430 stainless steel |
| Interior | 304 stainless steel |
| Ambient Operating Range | 40°F-90°F for optimum performance |
| Ship Weight | 598 lb |
