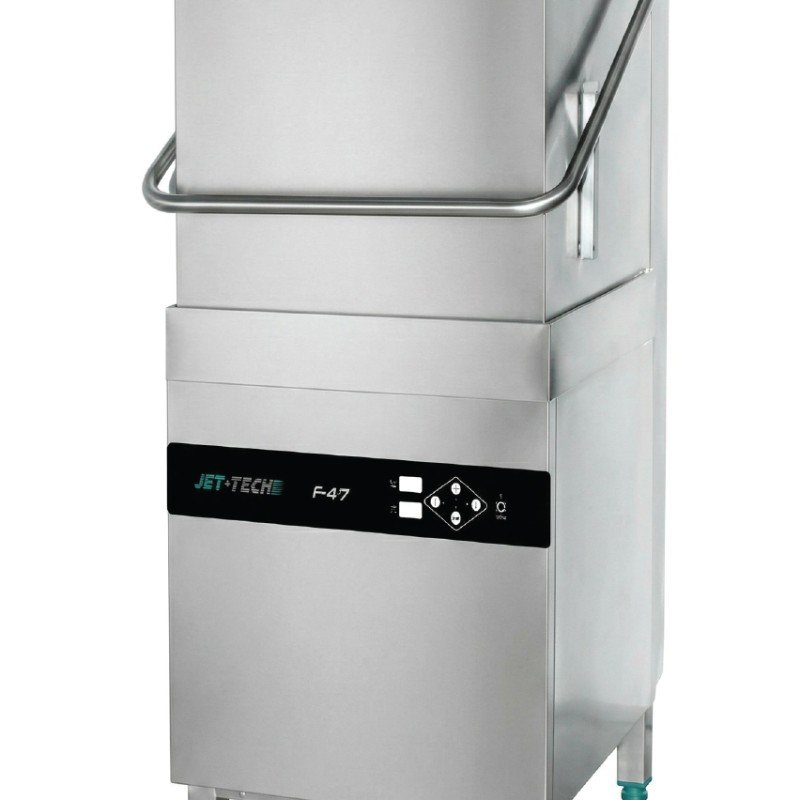

The Jet-Tech Defender Series F-47 is a high-temperature hood-type dishwasher built from stainless steel for high-production environments and locations with low-pressure water networks. It washes 40 racks per hour using 0.66 gallons of water per rack, with a 6.9 gallon tank, and supplies two dishracks, one peg and one flatware type, in the standard 20" x 20" size.
It sanitizes with high-temperature rinse water from an integrated booster heater, with electric tank heat and automatic fill. Cycle times are 90, 120, 180 or 600 seconds, and the user interface has a digital temperature display.
The F-47 is hard wired for 208-240V/60Hz three phase, with a 3 kW tank heater and a 6 kW electric booster. It is CSA design certified and NSF listed, and is intended for commercial installation only.
| Racks Per Hour | 40 |
|---|---|
| Rack Size | 20" x 20" |
| Cycle Time | 90 / 120 / 180 / 600 seconds |
| Tank Capacity | 6.9 gal (26 L) |
| Water Consumption | 0.66 gal (2.5 L) per cycle |
| Water Inlet Temperature | 122°F-140°F (50°C-60°C) |
| Water Inlet Pressure | 29-58 psi (2-4 bar), flowing |
| Water Hardness | 1.5-4.3 gpg (25-75 mg/L) |
| Voltage | 208-240V / 60Hz / 3 Phase, hard wired |
| Total Connected Load | 9.86 kW |
| Washing Pump Power | 0.71 kW |
| Rinsing Pump Power | 0.15 kW |
| Tank Heating Power | 3 kW |
| Electric Booster Power | 6 kW |
| Water Inlet | 3/4" connection, 5' length |
| Drain Outlet | 1 1/4", 6 1/2' hose |
| Net Weight | 181 lb (82.2 kg) |
| Certifications | CSA design certified, NSF listed |
