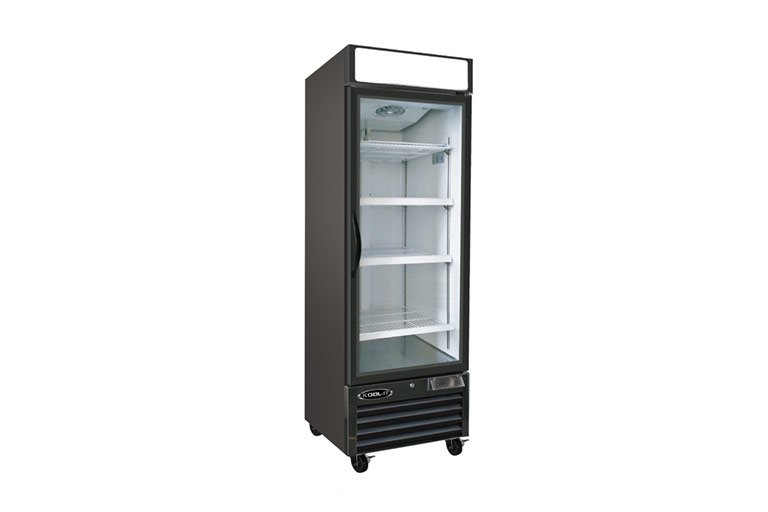

The Kool-It KGF-23 is a single swing glass door merchandiser freezer for displaying and storing frozen product in kitchens, convenience stores and service stations. It stores 19.2 cubic feet, holds -10°F and runs on 115V / 60Hz / 1 phase, with four wire shelves per door.
The cabinet has a black baked-enamel steel exterior, a white baked-enamel steel interior and a stainless steel interior base. Heavy-duty polyethylene-coated adjustable wire shelves hold product, and the locking glass doors are self-closing with easy-grab handles. The glass is a triple-pane heated door with a layer of transparent thermal insulating film between the panes, and a plastic upper sign panel with a lamp sits above the doors.
Forced air moves through the entire cabinet. High-efficiency evaporators are paired with an oversized condensing unit, temperature is shown on a digital display with electronic thermostatic control, and LED interior lighting lights the product. The cabinet is foamed-in-place CFC-free polyurethane and uses R290 refrigerant.
| Model | KGF-23 |
|---|---|
| Door | Type Swing glass |
| doors | triple-pane heated, locking, self-closing |
| Storage Capacity | 19.2 cu ft |
| Shelves per Door | 4 heavy-duty polyethylene-coated wire shelves |
| Overall Dimensions (W x D x H) | 26.8" x 33.5" x 80.1" |
| Internal Dimensions (W x D x H) | 22.3" x 27.8" x 52.7" |
| Voltage | 115V / 60Hz / 1 phase |
| Plug | NEMA 5-15P |
| Amps | 8.0 A |
| Compressor | 1/2 HP |
| Refrigerant | R290 |
| Holding Temperature | -10°F |
| Net Weight | 302 lb |
| Shipping Dimensions (W x D x H) | 28.3" x 34.8" x 84.6" |
| Shipping Weight | 353 lb |
