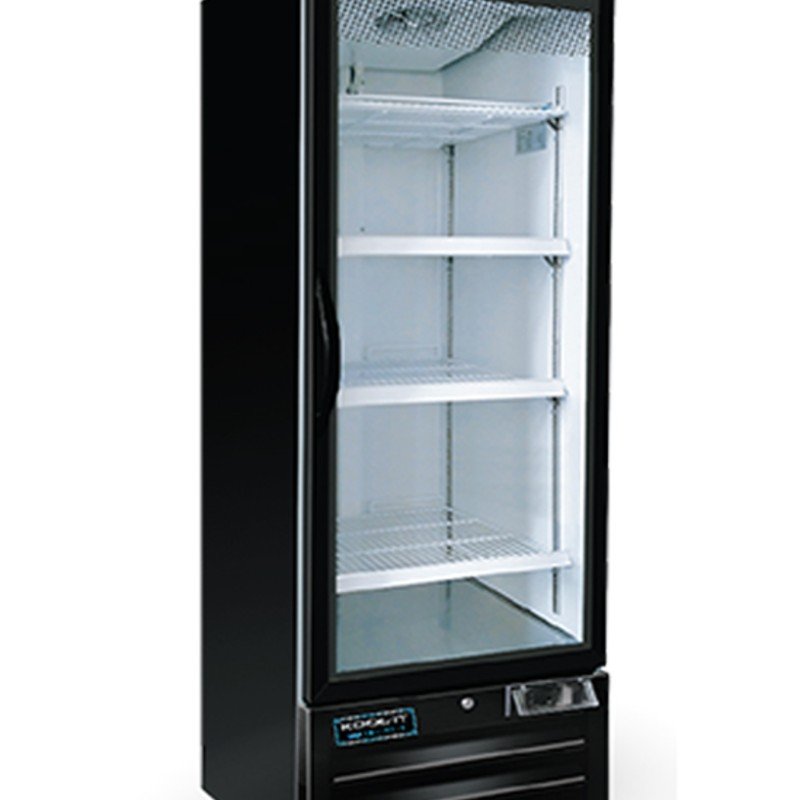

The Kool-It KGF-26 is a single full-vision swing glass door freezer for displaying and storing frozen product in kitchens and convenience stores. Full-length tempered glass doors give greater product visibility and increased load capacity, and the unit stores 22.7 cubic feet on 4 adjustable wire shelves (four per door). It holds -10°F and runs on 115V / 60Hz / 1 phase.
The cabinet has a black baked-enamel steel exterior, a white baked-enamel steel interior and a stainless steel interior base. The shelves are heavy-duty polyethylene-coated and fit full-size 18" x 26" pans. Locking glass doors are self-closing with easy-grab handles, and are triple-pane heated glass with a layer of transparent thermal insulating film between the panes. A black interior is available by special order.
Temperature is shown on a digital display with electronic thermostatic control, and LED interior lighting lights the product. High-efficiency evaporators are paired with an oversized condensing unit, and the cabinet is foamed-in-place CFC-free polyurethane with R290 refrigerant.
| Model | KGF-26 |
|---|---|
| Door | Type Full-length swing glass |
| doors | triple-pane heated, locking, self-closing |
| Storage Capacity | 22.7 cu ft |
| Shelves | 4 (four per door), polyethylene-coated wire |
| Overall Dimensions with Casters (W x D x H) | 26.75" x 31.87" x 80.7" |
| Internal Dimensions (W x D x H) | 22.2" x 27.5" x 59" |
| Voltage | 115V / 60Hz / 1 phase |
| Amps | 8.0 A |
| Compressor | 1 HP |
| Energy Consumption | 6.54 kWh/day |
| Refrigerant | R290 |
| Holding Temperature | -10°F |
| Net Weight | 313 lb |
| Shipping Dimensions (W x D x H) | 28.3" x 34.8" x 84.6" |
| Shipping Weight | 352 lb |
