The Ikon ITG-48E is a 48" countertop electric griddle. Each 12" section has its own independent temperature control, so a variety of products can cook at the same time. Snap-action thermostats control the 1" thick plate from 150°F (66°C) up to 450°F (232°C).
The griddle is rated 12 kW at 208V and 16 kW at 240V (3 kW at 208V and 4 kW at 240V per 12" section), 50/60 Hz, and is hard-wired to an appropriate electrical connection. The front and sides are stainless steel, and it has two grease drawers. It comes with 4" (102 mm) legs that adjust up to 1.375" (35 mm).
The unit needs 1" side and 1" rear clearance when installed next to a wall.
| Cooking Width | 48" |
|---|---|
| Independent Controls | One per 12" section (4) |
| Temperature Range | 150°F-450°F (66°C-232°C), snap action thermostats |
| Plate Thickness | 1" |
| Voltage | 208V / 240V |
| Power | 12 kW at 208V / 16 kW at 240V |

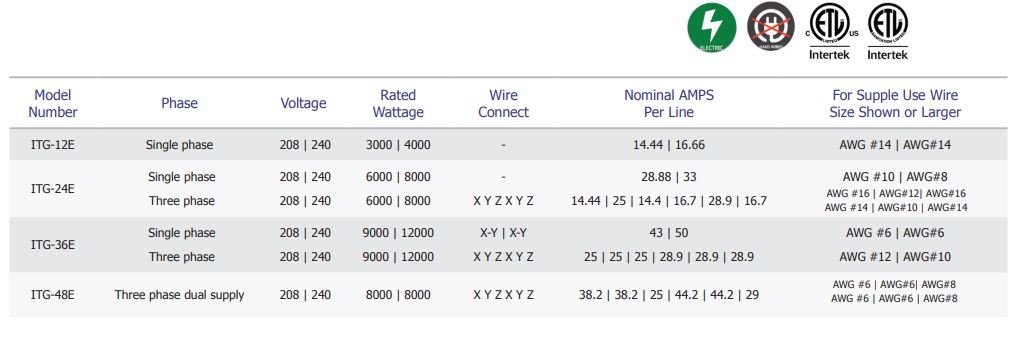

| Phase / Amps | Three phase dual supply, 8000 W each, 38.2 / 44.2 A per line L1-L2 (208 / 240V) |
| Frequency | 50/60 Hz |
| Connection | Hard wire |
| Grease Drawers | 2 |
| Legs | 4" (102 mm), adjustable up to 1.375" (35 mm) |

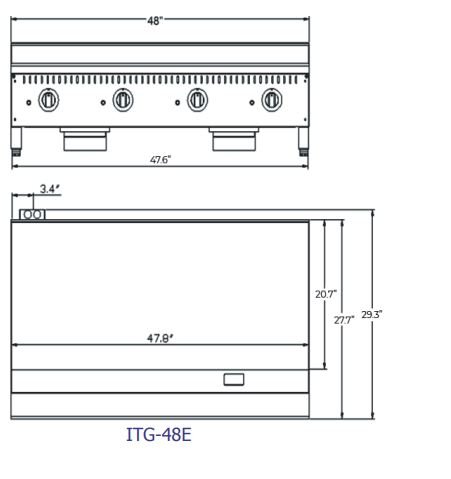

| Overall Dimensions | 48"W x 29.3"D x 15.7"H |
| Shipping Dimensions | 52.8"W x 36"D x 19.3"H |
| Clearance | 1" side, 1" back with wall |
| Unit Weight | 340 lb |
| Gross Weight | 422 lb |
