Pressure Requirements CO2 = 75 psig Water = 25 min psig dynamic
Draw Capacity 75-82 oz/min continuous, alternating barrels @ 75° F (24°C)
Refrigeration 19,000 BTU, R404A
for temperatures < 90°F (32°C)

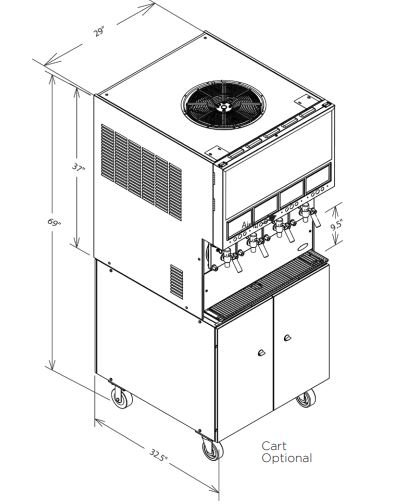

Unit Dimensions 29”W x 32.5”D x 37”H (577.85mm x 825.5mm x 939.8mm)
Graphic Card Dimensions 28.75”W x 11.79”H (730.25mm x 299.5mm)
Flavor Card Dimensions 6.5”W x 4”H (165.1mm x 101.6mm)
Unit Weight 470lbs (213.2kg)
*Customer must supply Co2, syrup, water supply, drainage, and electrical hook ups. *
| [ts_button link="https | //foodserviceequipmentdepot.com/wp-content/uploads/2026/02/653-621466142.pdf" target="_blank" add_icon="1" font_icon="fas fa-file-pdf" alignment="ts-aligncenter"]Download Spec Document[/ts_button] |
|---|---|
| Electrical | Requirements 230V +/- 15V 60Hz, 30 amp, single phase |
| Minimum Clearance Requirements | Top: 12” (305mm) Both Sides: 2” (51mm) -or- Back: 2” (51mm) |
| Shipping Weight Unit | 500lbs (226.8kg) Cart: 200lbs (90.72kg) |
| [ts_button link="https | //foodserviceequipmentdepot.com/wp-content/uploads/2026/02/653-621466142_manual.pdf" target="_blank" add_icon="1" font_icon="fas fa-file-pdf" alignment="ts-aligncenter"]DOWNLOAD INSTRUCTION MANUAL[/ts_button] |
